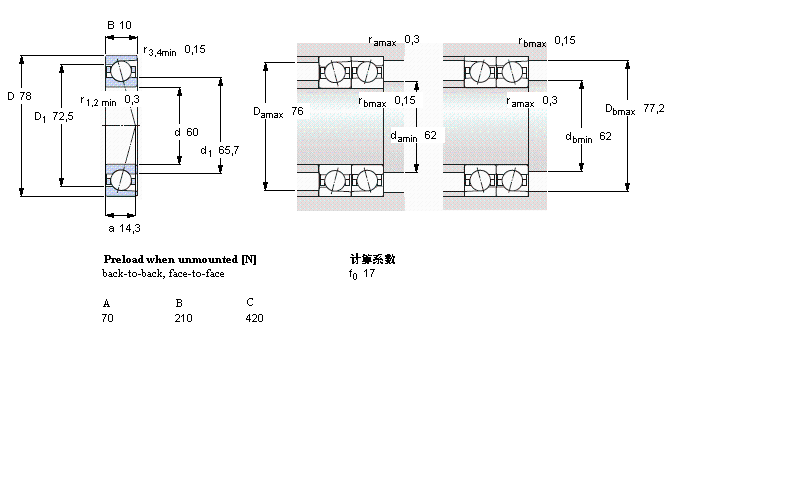

| 角接觸球軸承, 精密, CD, contact angle 15°, super-precision | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 預壓, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 60 | 78 | 10 | 13,5 | 14,3 | 0,6 | 16000 | 24000 | 0,1 | 71812 CD/P4A | SEA60 7CE1 | |
我公司特價供應以下型號產品： 140FC98700 四列圓柱滾子軸承 S71922FB/P7 角接觸球軸承 SNL3276GL 剖分立式軸承座 6311N 深溝球軸承 71921C/DT 角接觸球軸承 23260BKD1 調心滾子軸承 23288RHAKW33 調心滾子軸承 GE25-PW 關節軸承 1230 調心球軸承
